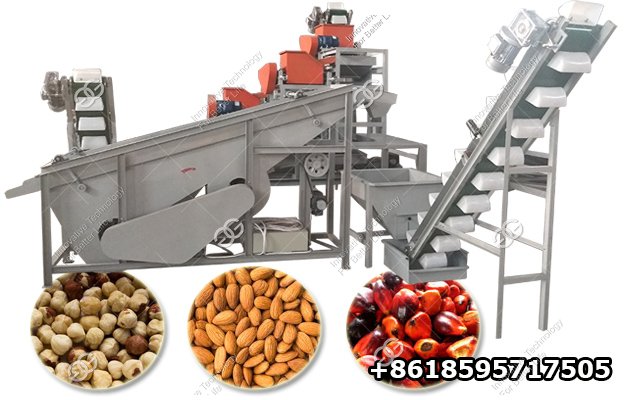

Automatic Palm Almond Shelling Machine Hazelnut Cracking Machine for Sale

Chat online Send email


This almond shelling machine production line is suitable for large-scale flow production for almond, hazelnut, palm etc., high shelling rate, high completeness, and easy cleaning. It is an ideal choice for large-scale shelling and processing enterprises to improve efficiency and reduce costs.

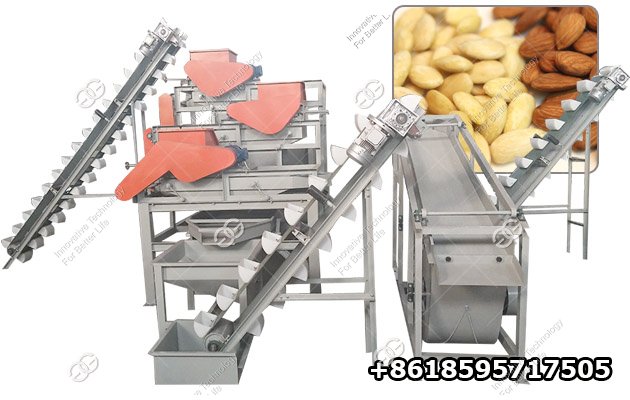

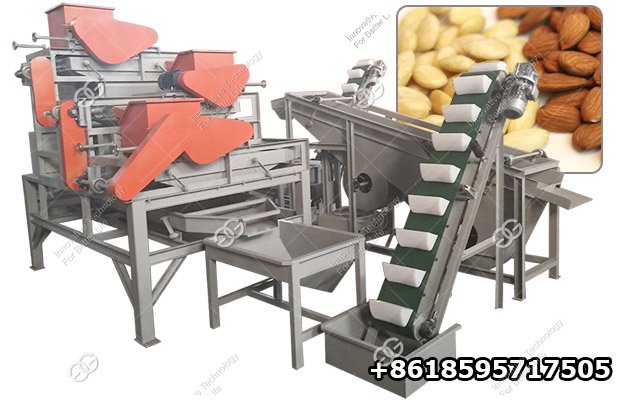

Almond Shelling Machine
Shelling Principle of Automatic Almond Hazelnut Shelling Machine
1. The raw materials are fed into the screening machine (flat sieve or drum sieve for selection) through the elevator, and then are separated into three or more grades. And then separated into three shelling machines for shelling through separate hoppers.
2. Shelling gap according to the size of the raw material to adjust, to complete the shelling clean nuts complete. After shelling by almond shelling machine, shell and kernel respectively into the 2 shell kernel separator(Small amount kenel can be combined to a separator).
3. Shell kernel separator, the shell and kernel are separated, a material mouth out of the kernel, another material discharge shell, and then enter into the storage impurity sorting machine.
4. The stock screening machine screens the impurities of the broken shell and feeds it into the immersion machine quantitatively.
5. Wet peeling machine is used to remove soaked nuts, automatic feeding and discharging.
6. The wet peeler removes the soaked kernel skin.
7. The peeled nuts are manually picked from the air-dried belt to remove the nuts and then sent to the hoist.
8. Nuts from the elevator into the drying and cooling one machine drying and cooling at low temperature, out of the kernel is finished at room temperature, the material directly packaged.
According to the production output and the size of raw materials, automatic almond shelling machine can be customized.
Hazelnut Shelling Machine
GELGOOG Machinery is a professional research and development of nuts shelling machinery manufacturing enterprises, after years of hard work and innovation has a solid R&D strength and strict management system, advanced production technology, to provide our clients with quality and cheap products throughout the world, some are exported to overseas, excellent quality and perfect after-sales service by the majority of users trust and praise.

Technical Data

Equipment Parameters
Horizontal sieve grading machine Size: 3.2*1.1*2.5m
Power: 1.5kw
Voltage: 380v/50hz
Distribution Hopper Size: 2*0.7*1.3m
Almond Shelling Machine Output:1000kg/h
Power: 6.75KW
Voltage: 380V
Size: 3.2*2.1*2.6m
Weight: 2100kg
Kernel shell Separator Size: 3.2*0.9*1.6m
Voltage: 380v/50hz
Picking Line Size: 5*0.6*1.5
Power: 0.75KW
Voltage: 380V/50HZ
Storage screening machine Size: 2.5*0.9*1.6m
Power: 1.5kw*2
Voltage: 380v/50hz
Soaking Machine Heating Power: 45kw
air compressor: 1.1kw
Voltage:380V 50hz
Wet Almond Peeling Machine Output: 180-220kg/h
Power: 0.75KW
Voltage: 380V
Peeling Rate: 98%
Whole kernel rate: 90-95%
Broken Rate: 2%
Weight: 260KG
Cooling Conveying Machine Size: 3*0.6*0.9
Power: 0.75KW
Fun Power: 0.55KW*3
Voltage: 380V/50HZ
Drying Machine Power:1.1KW
Heating power: 90KW
Or gas: 15kg/h
Voltage: 380v/60hz
Size: 6500*2200*2900mm
